DEK's metrology lab is equipped with multi-axis CMMs, optical measurement systems, and surface analysis instruments — delivering dimensional verification down to sub-micron accuracy for precision-machined components.

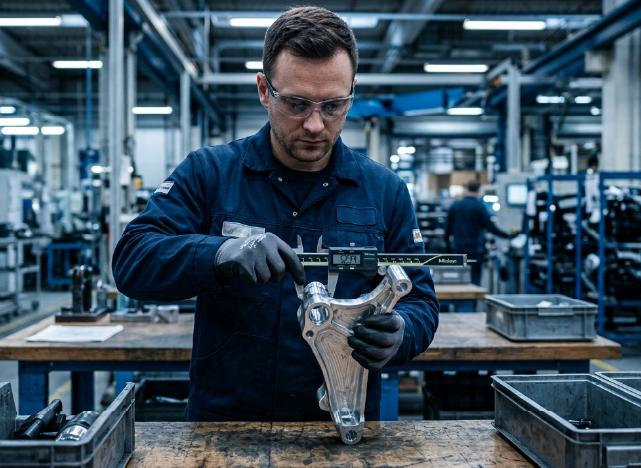

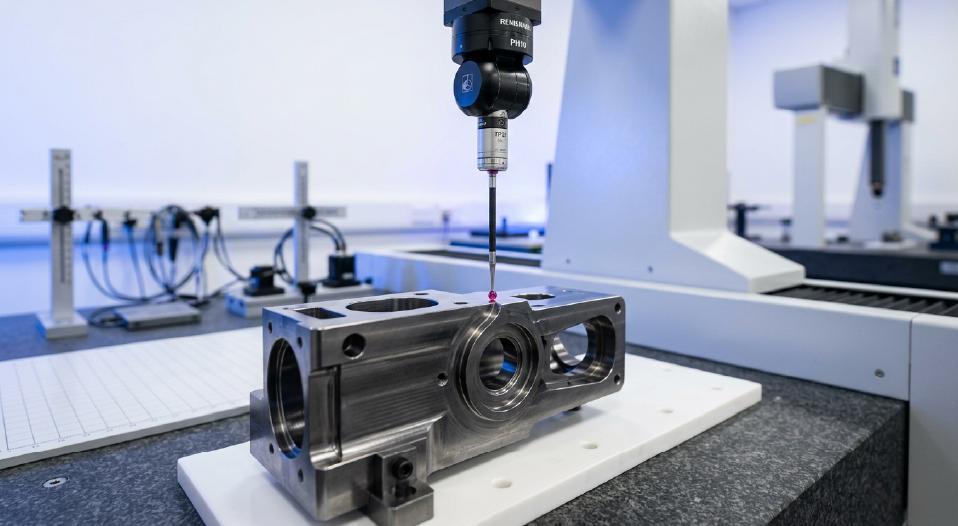

Our climate-controlled metrology lab houses bridge-type and articulated-arm CMMs with automated probe changers, enabling high-throughput dimensional verification for complex geometries and tight tolerances.
High-density point cloud capture for freeform surface comparison against CAD models with deviation mapping.
Flatness, cylindricity, true position, runout, profile — all geometric tolerances evaluated per ASME Y14.5.
Digital inspection reports generated automatically with pass/fail results, deviation values, and graphical output.
Beyond CMMs, our lab includes a full range of optical, surface, and dimensional inspection instruments — each calibrated on schedule and traceable to NIST standards.

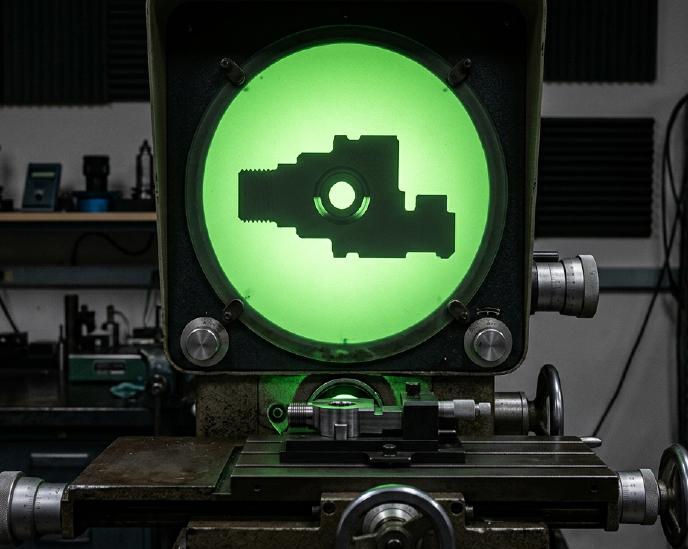

Profile projection and overlay inspection for 2D contour verification against DXF overlays and tolerance zones.
Profile projection and overlay inspection for 2D contour verification against DXF overlays and tolerance zones.
Profile projection and overlay inspection for 2D contour verification against DXF overlays and tolerance zones.
Profile projection and overlay inspection for 2D contour verification against DXF overlays and tolerance zones.
Profile projection and overlay inspection for 2D contour verification against DXF overlays and tolerance zones.
Profile projection and overlay inspection for 2D contour verification against DXF overlays and tolerance zones.
A consolidated view of our dimensional, surface, and material inspection capabilities with achievable accuracy ranges.
| Measurement Type | Method | Range | Best Accuracy | Category |
|---|---|---|---|---|
| Linear Dimensions (X/Y/Z) | CMM Touch Probe | Up to 1200mm | ±0.9µm | Contact |
| True Position & GD&T | CMM Multi-Sensor | Per drawing | ±1.2µm | Dimensional |
| Freeform Surface Deviation | CMM Scanning / Laser | Full part envelope | ±3µm | Contact |
| 2D Profile & Contour | Optical Comparator | Up to 350mm | ±5µm | Optical |
| Small Feature Inspection | Vision Measuring System | Up to 300mm | ±1.5µm | Optical |
| Surface Roughness (Ra, Rz) | Contact Profilometer | 0.005–160µm Ra | 0.001µm resolution | Surface |
| Roundness & Cylindricity | Precision Spindle | Up to Ø300mm | ±0.02µm | Dimensional |
| Hardness (HRC / HV) | Rockwell / Vickers | 20–70 HRC | ±0.5 HRC | Contact |
Our metrology capabilities aren't isolated to a lab — they're woven into the entire manufacturing workflow. From first article through final shipment, measurement data feeds back to the shop floor in real time, enabling immediate process corrections and ensuring parts stay within specification throughout the run.
Every measurement we take is documented, traceable, and delivered in formats that satisfy regulatory and customer audit requirements.
Full First Article Inspection reports with Form 1/2/3 per AS9102 Rev B, covering every ballooned characteristic on your drawing.
Aerospace
Production Part Approval Process submissions including dimensional results, material certs, process flow diagrams, and control plans.
Automotive / Industrial
Tailored documentation packages including CoC, material test reports, SPC summaries, and deviation analysis — formatted to your QMS requirements.
